Dell Laptop with Two External Monitors

laptop with two monitors

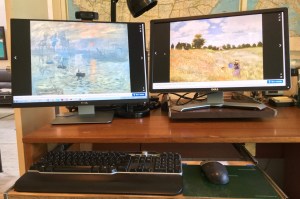

Two monitors hooked up to laptop

When you hook up two external displays to the out ports of a laptop, you will get the same image on each display. How can you hook up two external monitors so that they effectively become one single, very wide monitor, as shown in the photo?

This post describes a simple solution that achieves the desired effect for the Dell Precision 7710 laptop.



Solution

Friend Mark, who is a very knowledgeable systems specialist, came up with the effective and easily implemented solution described below. The first external monitor is connected as usual, say at the HDMI out port of the laptop. For the second monitor, a special setup is needed.

Monitor Adapter

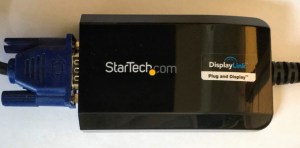

StarTech monitor adapter

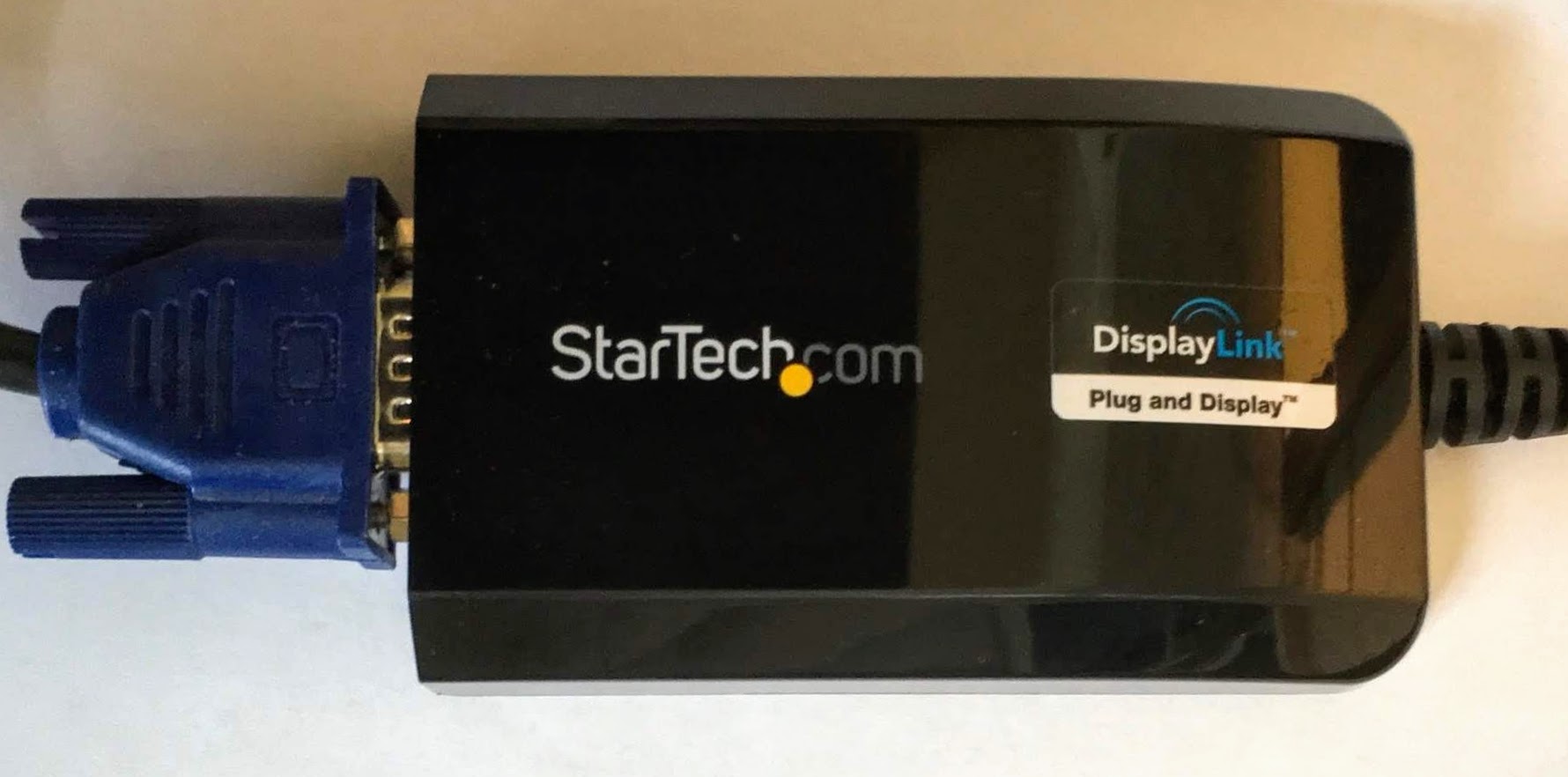

The key idea is to use a monitor adapter that is connected to one of the USB ports. The VGA output of the adapter is then connected to the second monitor. Mark suggested a monitor adapter by StarTech that has excellent reviews.

The Dell Precision 7710 has three USB ports. Since we were already using all of them, we added a USB hub.

At this point, two external devices demanded the transfer of large amounts of data through the USB ports: the monitor adapter hooked up to the second monitor, and the external camera. We connected them directly to one USB port each. The USB hub then was attached at the third USB port, and all other devices, such as the external keyboard, were connected via the USB hub.

It is prudent to gradually install and test the new system.

Installing the First Monitor

In the first step, only the first monitor is hooked up to one of the monitor out ports, say to the HDMI out port.

Click on the Display icon of the Control Panel, then choose the option “Adjust resolution.” Up comes a picture showing the laptop display as “1” and, most likely, the external monitor as “2.” If the external monitor is not shown, use the “Detect” option to have the laptop recognize the monitor.

Installing the Second Monitor

Shut down the laptop, hook up the monitor adapter to one of the USB ports of the laptop, and connect the VGA output of the adapter to the second monitor.

Turn on the laptop. Go again to the “Adjust resolution” option of Display. You should see something like this.

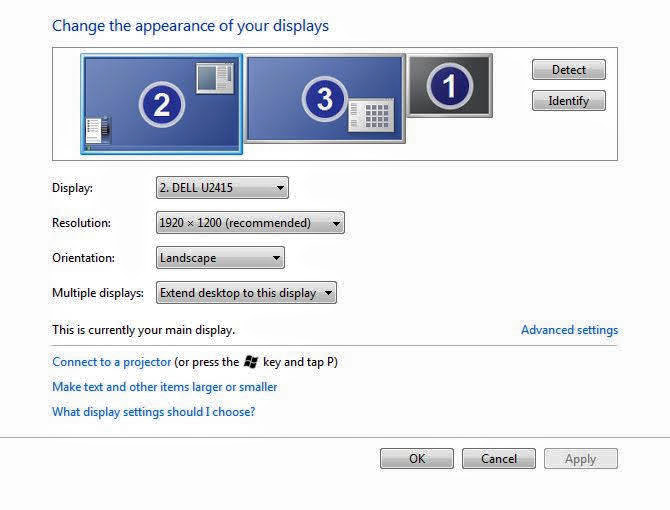

Display option window

In the example, the monitor labeled “1” is the laptop display, shown as turned off. The monitor labeled “2” is the first external monitor, a Dell U2415. Finally, the monitor labeled “3” refers to the second external monitor.

The model number of the second external monitor is not shown, but becomes visible when you click on the “Display” option. Make sure you do not change that option while doing so. The photo shows the correct choices for the options “Orientation” and “Multiple displays.”

If the monitors are shown in different horizontal order, you can drag them into the above configuration with the mouse.

It may well happen that you have already one monitor and want to complement it with another one. In that case, the new monitor should have a height that is not much different from that of the old one. On the other hand, the width can be significantly different without ill effect.

But there is a subtle test that you also need to do.

Pixel Test

Though the new monitor may have more pixels, each pixel should have about the same size as for the old monitor. You can compute pixel size by dividing the vertical size of the monitor by the number of vertical pixels.

Compute this ratio for both monitors. If the two values do not reasonably match, then a window moved from one monitor to the other will change greatly in size, something you won’t like. So either do not buy the selected monitor, or simply buy two new ones and discard the old one.

In the above photo, the new monitor is on the left, and the old one on the right. The old monitor, a Dell P2314H, is not quite as tall, but pixel sizes of the monitors match quite well.

With monitors of different height, you have the option of having the tops or the bottoms of the two monitors line up. We prefer that the tops line up, as shown in the above picture of the “Display” option. For the opposite choice, use the mouse to drag monitor “3” downward so that the two bottoms line up.

Assignment of Monitors to Ports

Whichever monitor has more vertical pixels, that monitor must be hooked up to one of the monitor out ports of the laptop, say the HDMI out port. The reason is that the vertical pixel count of the monitor connected to the monitor out port controls how everything is displayed. If you don’t follow this rule, an ugly display results.

A Word of Caution

You may be tempted to buy a so-called HD monitor, which has 1080 vertical pixels. These are really TV monitors that are claimed to work for computers. Friend Mark strongly advised not to buy such a monitor. They do not have the precision and display speed of computer monitors. Instead, spend more money and get something that really works.
